FEC30/FEC30W
产品简介：
台湾博大P-DUKE FEC30(FEC30W)DC-DC电源模块，2:1(FEC30)，4:1(FEC30W)宽范围输入电压，效率可达90％，尺寸:40.6*50.8*10.2，工作温度范围:-40℃~+85℃
产品详细：

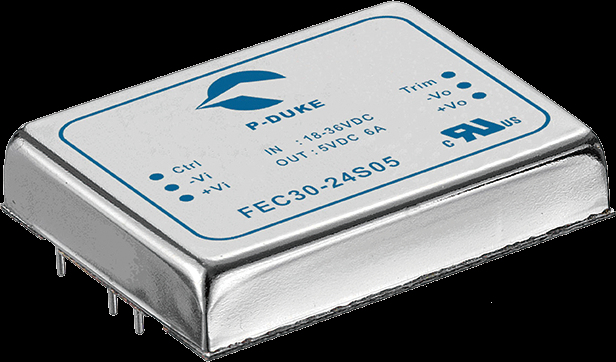

台湾博大P-DUKE FEC30(FEC30W)DC-DC电源模块
2:1(FEC30)，4:1(FEC30W)宽范围输入电压
国际安规认证
6面屏蔽
效率可达90％
尺寸:40.6*50.8*10.2(mm)
固定开关频率300KHz
工作温度范围:-40℃~+85℃
MTBF可达1.535*106小时
- 输入电压:9-18V
18-36V(10-40V)
36-75V(18-75V)
- 输出电压:1.5V/1.8V/2.5V/
3.3V/5V/12V/15V/
±12V/±15V
- 输出功率:9-30W
- 尺 寸:50.8*40.6*10.2
资料 资料
| 型号 |
标准输入 |
输入电压(V) |
效率(%) |
输出组数 |
输出电压(V) |
输出电流(A) |
输出功率(W) |
工作温度 |
尺寸(mm) |
| FEC30-12D12 | 12 | 9~18 | 87 | 2 | 12/-12 | 1.25 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12D15 | 12 | 18~36 | 87 | 2 | 15/-15 | 1 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S05 | 12 | 9~18 | 87 | 1 | 5/0 | 6 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S12 | 12 | 9~18 | 88 | 1 | 12/0 | 2.5 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S15 | 12 | 9~18 | 88 | 1 | 15/0 | 2 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S1P5 | 12 | 9~18 | 78 | 1 | 1.5/0 | 6 | 9 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S1P8 | 12 | 9~18 | 81 | 1 | 1.8/0 | 6 | 10.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S2P5 | 12 | 9~18 | 83 | 1 | 2.5/0 | 6 | 15 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-12S3P3 | 12 | 9~18 | 85 | 1 | 3.3/0 | 6 | 19.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24D12 | 24 | 18~36 | 88 | 2 | 12/-12 | 1.25 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24D12W | 24 | 10~40 | 84 | 2 | 12/-12 | 1.25 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24D15 | 24 | 18~36 | 88 | 2 | 15/-15 | 1 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24D15W | 24 | 10~40 | 85 | 2 | 15/-15 | 1 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S05 | 24 | 18~36 | 88 | 1 | 5/0 | 6 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S05W | 24 | 10~40 | 87 | 1 | 5/0 | 6 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S12 | 24 | 18~36 | 89 | 1 | 12/0 | 2.5 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S12W | 24 | 10~40 | 87 | 1 | 12/0 | 2.5 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S15 | 24 | 18~36 | 89 | 1 | 15/0 | 2 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S15W | 24 | 10~40 | 88 | 1 | 15/0 | 2 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S1P5 | 24 | 18~36 | 80 | 1 | 1.5/0 | 6 | 9 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S1P5W | 24 | 10~40 | 80 | 1 | 1.5/0 | 8 | 12 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S1P8 | 24 | 18~36 | 82 | 1 | 1.8/0 | 6 | 10.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S1P8W | 24 | 10~40 | 83 | 1 | 1.8/0 | 8 | 14.4 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S2P5 | 24 | 18~36 | 84 | 1 | 2.5/0 | 6 | 15 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S2P5W | 24 | 10~40 | 85 | 1 | 2.5/0 | 8 | 20 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S3P3 | 24 | 18~36 | 86 | 1 | 3.3/0 | 6 | 19.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-24S3P3W | 24 | 10~40 | 87 | 1 | 3.3/0 | 6 | 19.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48D12 | 48 | 36~75 | 88 | 2 | 12/-12 | 1.25 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48D12W | 48 | 18~75 | 85 | 1 | 12/-12 | 1.25 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48D15 | 48 | 36~75 | 88 | 2 | 15/-15 | 1 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48D15W | 48 | 18~75 | 86 | 1 | 15/-15 | 1 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S05 | 48 | 36~75 | 89 | 1 | 5/0 | 6 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S05W | 48 | 18~75 | 88 | 1 | 5/0 | 6 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S12 | 48 | 36~75 | 90 | 1 | 12/0 | 2.5 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S12W | 48 | 18~75 | 87 | 1 | 12/0 | 2.5 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S15 | 48 | 36~75 | 90 | 1 | 15/0 | 2 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S15W | 48 | 18~75 | 88 | 1 | 15/0 | 2 | 30 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S1P5 | 48 | 36~75 | 81 | 1 | 1.5/0 | 6 | 9 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S1P5W | 48 | 18~75 | 80 | 1 | 1.5/0 | 8 | 12 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S1P8 | 48 | 36~75 | 83 | 1 | 1.8/0 | 6 | 10.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S1P8W | 48 | 18~75 | 83 | 1 | 1.8/0 | 8 | 14.4 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S2P5 | 48 | 36~75 | 85 | 1 | 2.5/0 | 6 | 15 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S2P5W | 48 | 18~75 | 86 | 1 | 2.5/0 | 8 | 20 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S3P3 | 48 | 36~75 | 87 | 1 | 3.3/0 | 6 | 19.8 | -40~+85℃ | 50.8*40.6*10.2 |
| FEC30-48S3P3W | 48 | 18~75 | 87 | 1 | 3.3/0 | 6 | 19.8 | -40~+85℃ | 50.8*40.6*10.2 |
