PFKC03
产品简介：
台湾博大P-DUKE PFKC03系列DC/DC电源模块,输出电压:3.3V/5V/12V/15V/±5V/±12V/±15V ,输出功率2-3W,效率达80%,工作温度范围-25℃至71℃
产品详细：

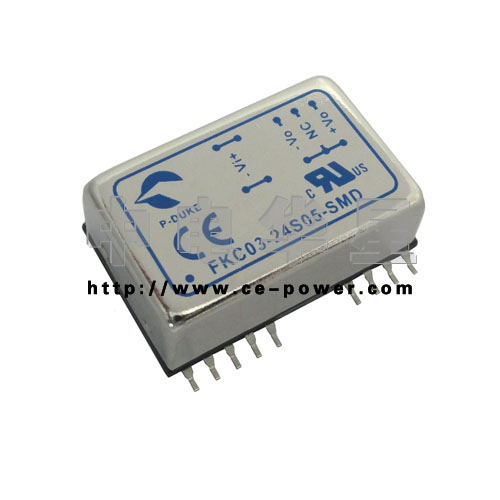

台湾博大P-DUKE PFKC03系列DC/DC电源模块
输入电压:5V/12V/24V/48V
输出电压:3.3V/5V/12V/15V/±5V/±12V/±15V
输出功率2-3W,效率达80%
2:1输入电压范围,遥控功能
过流短路保护
工作温度范围-25℃至71℃
MTBF达3.69*106小时
输入输出隔离电压1600VDC或3000VDC(型号后缀"H")
标准24脚双列直插及SMD封装
外型尺寸:DIP封装:31.8mm(长)x20.3mm(宽)x10.2mm(高)
SMD封装:32.0mm(长)x20.3mm(宽)x11.2mm(高)
- 输入电压:4.5-6V 9-18V
18-36V 36-75V
- 输出电压:3.3V/5V/12V/
15V/±5V/
±12V/±15V
- 输出功率:2-3W
- 尺 寸:31.8*20.3*10.2
资料
| 型号 |
标准输入 |
输入电压(V) |
效率(%) |
输出组数 |
输出电压(V) |
输出电流(A) |
输出功率(W) |
工作温度 |
尺寸(mm) |
| PFKC03-05D05 | 5 | 4.5~6 | 74 | 2 | 5/-5 | 0.3 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-05D12 | 5 | 4.5~6 | 75 | 2 | 12/-12 | 0.125 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-05D15 | 5 | 4.5~6 | 73 | 2 | 15/-15 | 0.1 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-05S05 | 5 | 4.5~6 | 70 | 1 | 5/0 | 0.6 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-05S12 | 5 | 4.5~6 | 76 | 1 | 12/0 | 0.25 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-05S15 | 5 | 4.5~6 | 75 | 1 | 15/0 | 0.2 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-05S33 | 5 | 4.5~6 | 66 | 1 | 3.3/0 | 0.6 | 2 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12D05 | 12 | 9~18 | 76 | 2 | 5/-5 | 0.3 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12D12 | 12 | 9~18 | 78 | 2 | 12/-12 | 0.125 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12D15 | 12 | 9~18 | 79 | 2 | 15/-15 | 0.1 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12S05 | 12 | 9~18 | 75 | 1 | 5/0 | 0.6 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12S12 | 12 | 9~18 | 79 | 1 | 12/0 | 0.25 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12S15 | 12 | 9~18 | 77 | 1 | 15/0 | 0.2 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-12S33 | 12 | 9~18 | 70 | 1 | 3.3/0 | 0.6 | 2 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24D05 | 24 | 18~36 | 77 | 2 | 5/-5 | 0.3 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24D12 | 24 | 18~36 | 79 | 2 | 12/12 | 0.125 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24D15 | 24 | 18~36 | 79 | 2 | 15/-15 | 0.1 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24S05 | 24 | 18~36 | 76 | 1 | 5/0 | 0.6 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24S12 | 24 | 18~36 | 80 | 1 | 12/0 | 0.25 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24S15 | 24 | 18~36 | 80 | 1 | 15/0 | 0.2 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-24S33 | 24 | 18~36 | 71 | 1 | 3.3/0 | 0.6 | 2 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48D05 | 48 | 36~75 | 77 | 2 | 5/-5 | 0.3 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48D12 | 48 | 36~75 | 79 | 2 | 12/-12 | 0.125 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48D15 | 48 | 36~75 | 79 | 2 | 15/-15 | 0.1 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48S05 | 48 | 36~75 | 75 | 1 | 5/0 | 0.6 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48S12 | 48 | 36~75 | 79 | 1 | 12/0 | 0.25 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48S15 | 48 | 36~75 | 79 | 1 | 15/0 | 0.2 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC03-48S33 | 48 | 36~75 | 72 | 1 | 3.3/0 | 0.6 | 3 | -25~+71℃ | 31.8*20.3*10.2 |
