PFKC05
产品简介：

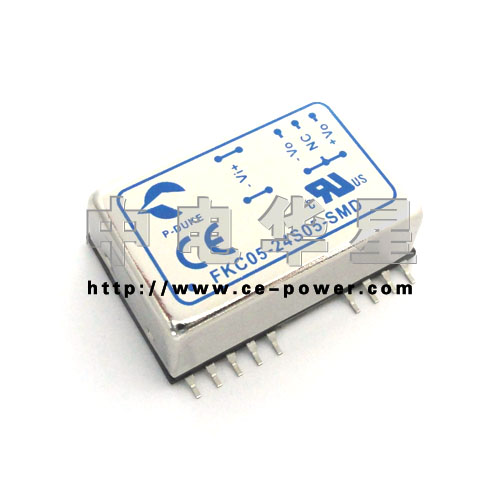

台湾博大P-DUKE PFKC05系列 DC/DC电源模块,输出电压:3.3V/5V/12V/15V/ ±5V/±12V/±15V,输出功率3.3-6W,效率达81%
产品详细：
台湾博大P-DUKE PFKC05系列 DC/DC电源模块
输入电压:12V/24V/48V
输出电压:3.3V/5V/12V/15V/ ±5V/±12V/±15V
输出功率3.3-6W,效率达81%
工作频率>100KH
连续过流短路保护
工作温度范围-25℃至71℃
输入输出隔离电压1600VDC或3000VDC(型号后缀"H")
MTBF达3.731*106小时
金属外壳绝缘底座,五面EMI/RFI屏蔽
标准24脚双列直插及SMD封装
外型尺寸:DIP封装:31.8mm(长)x20.3mm(宽)x10.2mm(高)
SMD封装:32.0mm(长)x20.3mm(宽)x12.1mm(高)
- 输入电压:9-18V
18-36V 36-75V
- 输出电压:3.3V/5V/12V/
15V/ ±5V/
±12V/±15V
- 输出功率:3.3-6W
- 尺 寸:31.8*20.3*10.2
资料
| 型号 |
标准输入 |
输入电压(V) |
效率(%) |
输出组数 |
输出电压(V) |
输出电流(A) |
输出功率(W) |
工作温度 |
尺寸(mm) |
| PFKC05-12D05 | 12 | 9~18 | 77 | 2 | 5/-5 | 0.5 | 5 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-12D12 | 12 | 9~18 | 80 | 2 | 12/-12 | 0.23 | 5.6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-12D15 | 12 | 9~18 | 80 | 2 | 15/-15 | 0.19 | 6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-12S05 | 12 | 9~18 | 76 | 1 | 5/0 | 1 | 5 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-12S12 | 12 | 9~18 | 80 | 1 | 12/0 | 0.47 | 5.6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-12S15 | 12 | 9~18 | 80 | 1 | 15/0 | 0.4 | 6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-12S33 | 12 | 9~18 | 72 | 1 | 3.3/0 | 1 | 3.3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24D05 | 24 | 18~36 | 78 | 2 | 5/-5 | 0.5 | 5 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24D12 | 24 | 18~36 | 81 | 2 | 12/-12 | 0.23 | 5.6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24D15 | 24 | 18~36 | 81 | 2 | 15/-15 | 0.19 | 6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24S05 | 24 | 18~36 | 79 | 1 | 5/0 | 1 | 5 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24S12 | 24 | 18~36 | 81 | 1 | 12/0 | 0.47 | 5.6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24S15 | 24 | 18~36 | 81 | 1 | 15/0 | 0.4 | 6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-24S33 | 24 | 18~36 | 72 | 1 | 3.3/0 | 1 | 3.3 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48D05 | 48 | 36~75 | 77 | 2 | 5/-5 | 0.5 | 5 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48D12 | 48 | 36~75 | 81 | 2 | 12/-12 | 0.23 | 5.6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48D15 | 48 | 36~75 | 81 | 2 | 15/-15 | 0.19 | 6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48S05 | 48 | 36~75 | 78 | 1 | 5/0 | 1 | 5 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48S12 | 48 | 36~75 | 81 | 1 | 12/0 | 0.47 | 5.6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48S15 | 48 | 36~75 | 81 | 1 | 15/0 | 0.4 | 6 | -25~+71℃ | 31.8*20.3*10.2 |
| PFKC05-48S33 | 48 | 36~75 | 73 | 1 | 3.3/0 | 1 | 3.3 | -25~+71℃ | 31.8*20.3*10.2 |
