FKC12/FKC12W
产品简介：
台湾博大P-DUKE FKC12(FKC12W)系列DC/DC电源模块,输出电压:2.5V/3.3V/5V/12V/15V/±5V/±12V/±15 ,输出功率:8.8-12W,效率可达88% ,工作温度: -40℃~+85℃(FKC12),-40℃~+105℃(FKC12W)
产品详细：

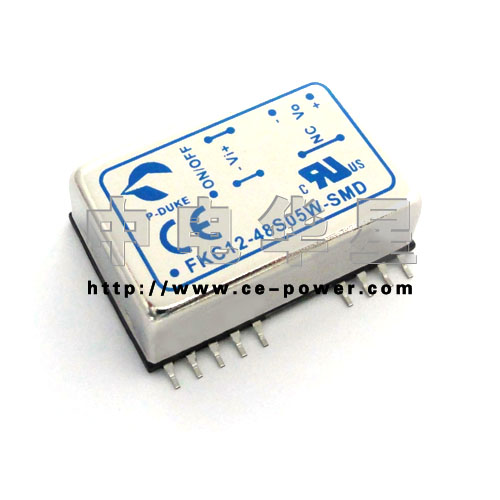

台湾博大P-DUKE FKC12(FKC12W)系列DC/DC电源模块
输入电压:12V/24V/48V
输出电压:2.5V/3.3V/5V/12V/15V/±5V/±12V/±15
输出功率:8.8-12W,效率可达88%
2:1(FKC12)及4:1(FKC12W) 输入电压范围
国际安规认证
金属外壳,五面EMI/RFI屏蔽
连续短路保护
固定开关频率300KHz
工作温度: -40℃~+85℃(FKC12),-40℃~+105℃(FKC12W)
MTBF达3.053*106小时
标准24脚双列直插及SMD封装,
外型尺寸:DIP封装:31.8mm(长)x20.3mm(宽)x10.2mm(高)
SMD封装:32.0mm(长)x20.3mm(宽)x11.2mm(高)
- 输入电压:9-18V
18-36V(9-36V)
36-75V(18-75V)
- 输出电压:2.5V/3.3V/5V/
12V/15V/ ±5V/
±12V/±15V
- 输出功率:8.8-12W
- 尺 寸:31.8*20.3*10.2
资料 资料
| 型号 |
标准输入 |
输入电压(V) |
效率(%) |
输出组数 |
输出电压(V) |
输出电流(A) |
输出功率(W) |
工作温度 |
尺寸(mm) |
| FKC12-12D05 | 12 | 9~18 | 82 | 2 | 5/-5 | 1.2 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12D12 | 12 | 9~18 | 87 | 2 | 12/-12 | 0.5 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12D15 | 12 | 9~18 | 87 | 2 | 15/-15 | 0.4 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12S05 | 12 | 9~18 | 86 | 1 | 5/0 | 2.4 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12S12 | 12 | 9~18 | 86 | 1 | 12/0 | 1 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12S15 | 12 | 9~18 | 86 | 1 | 15/0 | 0.8 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12S2P5 | 12 | 9~18 | 82 | 1 | 2.5/0 | 3.5 | 8.8 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-12S3P3 | 12 | 9~18 | 84 | 1 | 3.3/0 | 3.5 | 11.6 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24D05 | 24 | 18~36 | 83 | 2 | 5/-5 | 1.2 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24D05W | 24 | 9~36 | 84 | 2 | 5/-5 | 1.2 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-24D12 | 24 | 18~36 | 88 | 2 | 12/-12 | 0.5 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24D12W | 24 | 9~36 | 86 | 2 | 12/-12 | 0.5 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-24D15 | 24 | 18~36 | 88 | 2 | 15/-15 | 0.4 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24D15W | 24 | 9~36 | 86 | 2 | 15/-15 | 0.4 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-24S05 | 24 | 18~36 | 87 | 1 | 5/0 | 2.4 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24S05W | 24 | 9~36 | 87 | 1 | 5/0 | 2.4 | 12.2 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-24S12 | 24 | 18~36 | 87 | 1 | 12/0 | 1 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24S12W | 24 | 9~36 | 86 | 1 | 12/0 | 1 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-24S15 | 24 | 18~36 | 87 | 1 | 15/0 | 0.8 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24S15W | 24 | 9~36 | 86 | 1 | 15/0 | 0.8 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-24S2P5 | 24 | 18~36 | 83 | 1 | 2.5/0 | 3.5 | 8.8 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24S3P3 | 24 | 18~36 | 85 | 1 | 3.3/0 | 3.5 | 11.6 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-24S3P3W | 24 | 9~36 | 84 | 1 | 3.3/0 | 3.5 | 11.6 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48D05 | 48 | 36~75 | 83 | 2 | 5/-5 | 1.2 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48D05W | 48 | 18~75 | 85 | 2 | 5/-5 | 1.2 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48D12 | 48 | 36~75 | 88 | 2 | 12/-12 | 0.5 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48D12W | 48 | 18~75 | 87 | 2 | 12/-12 | 0.5 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48D15 | 48 | 36~75 | 88 | 2 | 15/-15 | 0.4 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48D15W | 48 | 18~75 | 87 | 2 | 15/-15 | 0.4 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48S05 | 48 | 36~75 | 87 | 1 | 5/0 | 2.4 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48S05W | 48 | 18~75 | 87 | 1 | 5/0 | 2.4 | 12.2 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48S12 | 48 | 36~75 | 87 | 1 | 12/0 | 1 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48S12W | 48 | 18~75 | 87 | 1 | 12/0 | 1 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48S15 | 48 | 36~75 | 87 | 1 | 15/0 | 0.8 | 12 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48S15W | 48 | 18~75 | 88 | 1 | 15/0 | 0.8 | 12 | -40~+105℃ | 31.8*20.3*10.2 |
| FKC12-48S2P5 | 48 | 36~75 | 83 | 1 | 2.5/0 | 3.5 | 8.8 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48S3P3 | 48 | 36~75 | 85 | 1 | 3.3/0 | 3.5 | 11.6 | -40~+85℃ | 31.8*20.3*10.2 |
| FKC12-48S3P3W | 48 | 18~75 | 84 | 1 | 3.3/0 | 3.5 | 11.6 | -40~+105℃ | 31.8*20.3*10.2 |
