LCD15/LCD15W
产品简介：
台湾博大P-DUKE LCD15/LCD15W系列 DC/DC电源模块,2:1(LCD15),4:1(LCD15W)输入电压范围,输出电压:3.3V/5V/12V/15V
输出功率13.2-15.6W,效率达88% ,工作温度范围-40℃~+85℃
产品详细：

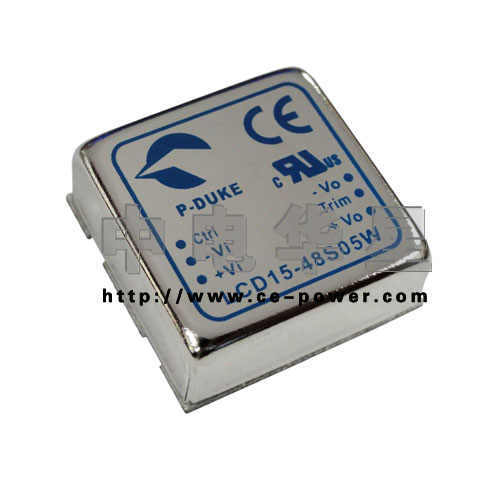

台湾博大P-DUKE LCD15/LCD15W系列 DC/DC电源模块
输入电压:12V/24V/48V
输出电压:3.3V/5V/12V/15V
输出功率13.2-15.6W,效率达88%
2:1(LCD15),4:1(LCD15W)输入电压范围,
工作频率400KHZ
输入输出隔离电压高达1600VDC
输入欠压关闭,连续短路保护
工作温度范围-40℃~+85℃
金属外壳绝缘底座,六面EMI/RFI屏蔽
外型尺寸:25.4mm(长)x25.4mm(宽)x9.9mm(高)
- 输入电压:9-18V
18-36V(9-36V)
36-75V(18-75V)
- 输出电压:3.3V/5V/
12V/15V
- 输出功率:13.2-15W
- 尺 寸:25.4*25.4*9.9
资料 资料
| 型号 |
标准输入 |
输入电压(V) |
效率(%) |
输出组数 |
输出电压(V) |
输出电流(A) |
输出功率(W) |
工作温度 |
尺寸(mm) |
| LCD15-12S05 | 12 | 9~18 | 86 | 1 | 5/0 | 3 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-12S12 | 12 | 9~18 | 85 | 1 | 12/0 | 1.3 | 15.6 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-12S15 | 12 | 9~18 | 87 | 1 | 15/0 | 1 | 15.6 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-12S3P3 | 12 | 9~18 | 84 | 1 | 3.3/0 | 4 | 13.2 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S05 | 24 | 18~36 | 86 | 1 | 5/0 | 3 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S05W | 24 | 9~36 | 84 | 1 | 5/0 | 3 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S12 | 24 | 18~36 | 86 | 1 | 12/0 | 1.3 | 15.6 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S12W | 24 | 9~36 | 86 | 1 | 12/0 | 1.3 | 15.6 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S15 | 24 | 18~36 | 88 | 1 | 15/0 | 1 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S15W | 24 | 9~36 | 85 | 1 | 15/0 | 1 | 5 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S3P3 | 24 | 18~36 | 86 | 1 | 3.3/0 | 4 | 13.2 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-24S3P3W | 24 | 9~36 | 86 | 1 | 3.3/0 | 4 | 13.2 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S05 | 48 | 36~75 | 88 | 1 | 5/0 | 3 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S05W | 48 | 18~75 | 86 | 1 | 5/0 | 3 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S12 | 48 | 36~75 | 88 | 1 | 12/0 | 1.3 | 15.6 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S12W | 48 | 18~75 | 87 | 1 | 12/0 | 1.3 | 15.6 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S15 | 48 | 36~75 | 88 | 1 | 15/0 | 1 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S15W | 48 | 18~75 | 87 | 1 | 15/0 | 1 | 15 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S3P3 | 48 | 36~75 | 86 | 1 | 3.3/0 | 4 | 13.2 | -40~+85℃ | 25.4*25.4*9.9 |
| LCD15-48S3P3W | 48 | 18~75 | 86 | 1 | 3.3/0 | 4 | 13.2 | -40~+85℃ | 25.4*25.4*9.9 |
