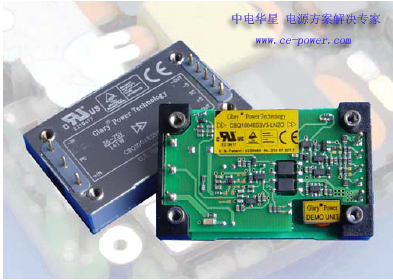

COE

产品简介:

产品详细:

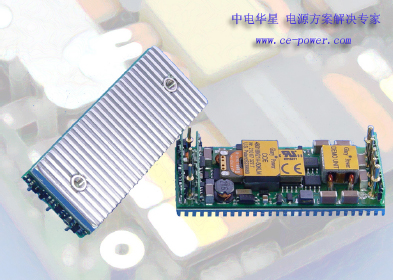

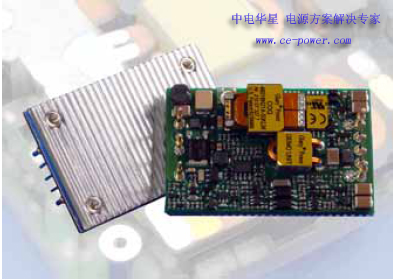

The COE series provides up to 132W/50A outputs with industry standard eighth brick package. The efficient SR stage combining with patented “Buck Reset” topology reduce power loss to achieve 177W/in3 power density, the single component side board designed with Sink-Plate technology eliminate the hot spot gives converter better thermal performance. Modules are designed for Telecom, Servers, Networking equipments and other applications that use a 24V or 48V (36~75V) input bus.



Options for COE Series are listed as follows:
A (Enable Logic): P: Positive N: Negative
B (Pin Dimension): 0: 0.12” 1: 0.16” 2: 0.20” 3: 0.24”
C (Standoff Height): 0: 0.02” 1: 0.08” 2: 0.16”
D (Base-Plate/Module Thickness): M: 1.0mm Metal Plate/0.34” A: 3.0mm Sink-Plate/0.42” B: 5.0mm Sink-Plate/0.50”
E F (Output): 00 to 99 for output current rating
Example: COE48033N00A-30 is a COE series eighth brick 48V to 3.3V/30A dc/dc converter with negative control logic, 0.12” pin length,
0.02” of standoff height and 3.0mm Sink-Plate. The total height of this module is 0.02”+0.42”=0.44”


  • 输入电压:18-36V 36-75V 18-75V
  • 输出电压:1.5V/1.8V/2.5V 3.3V/5V/12V
  • 输出功率:75-132W
  • 尺 寸:1/8砖

资料 资料

其他型号
型号 标准输入 输入电压(V) 效率(%) 输出组数 输出电压(V) 输出电流(A) 输出功率(W) 工作温度 尺寸(mm)
COE24015ABCD-EF2418~368511.5/05075-40~+120℃**
COE24018ABCD-EF2418~368711.8/05090-40~+120℃**
COE24025ABCD-EF2418~368912.5/050125-40~+120℃**
COE24033ABCD-EF2418~368913.3/03099-40~+120℃**
COE24050ABCD-EF2418~369015/025125-40~+120℃**
COE24050N20M-15MBA2418~758715/01575-40~+110℃**
COE24120ABCD-EF2418~3691112/010120-40~+120℃**
COE48015ABCD-EF4836~758511.5/05075-40~+120℃**
COE48018ABCD-EF4836~758711.8/05090-40~+120℃**
COE48025ABCD-EF4836~758912.5/040100-40~+120℃**
COE48033ABCD-EF4836~759013.3/03099-40~+120℃**
COE48050ABCD-EF4836~759115/025125-40~+120℃**
COE48120ABCD-EF4836~7592112/011132-40~+120℃**
