BMR450
产品简介：
DiPOL connect
Max height 8.5 mm (0.335 inch)
Efficiency typ. 94.3 percent at 3.3 V out half load
产品详细：
- DiPOL connect
- Max height 8.5 mm (0.335 inch)
- Efficiency typ. 94.3 percent at 3.3 V out half load

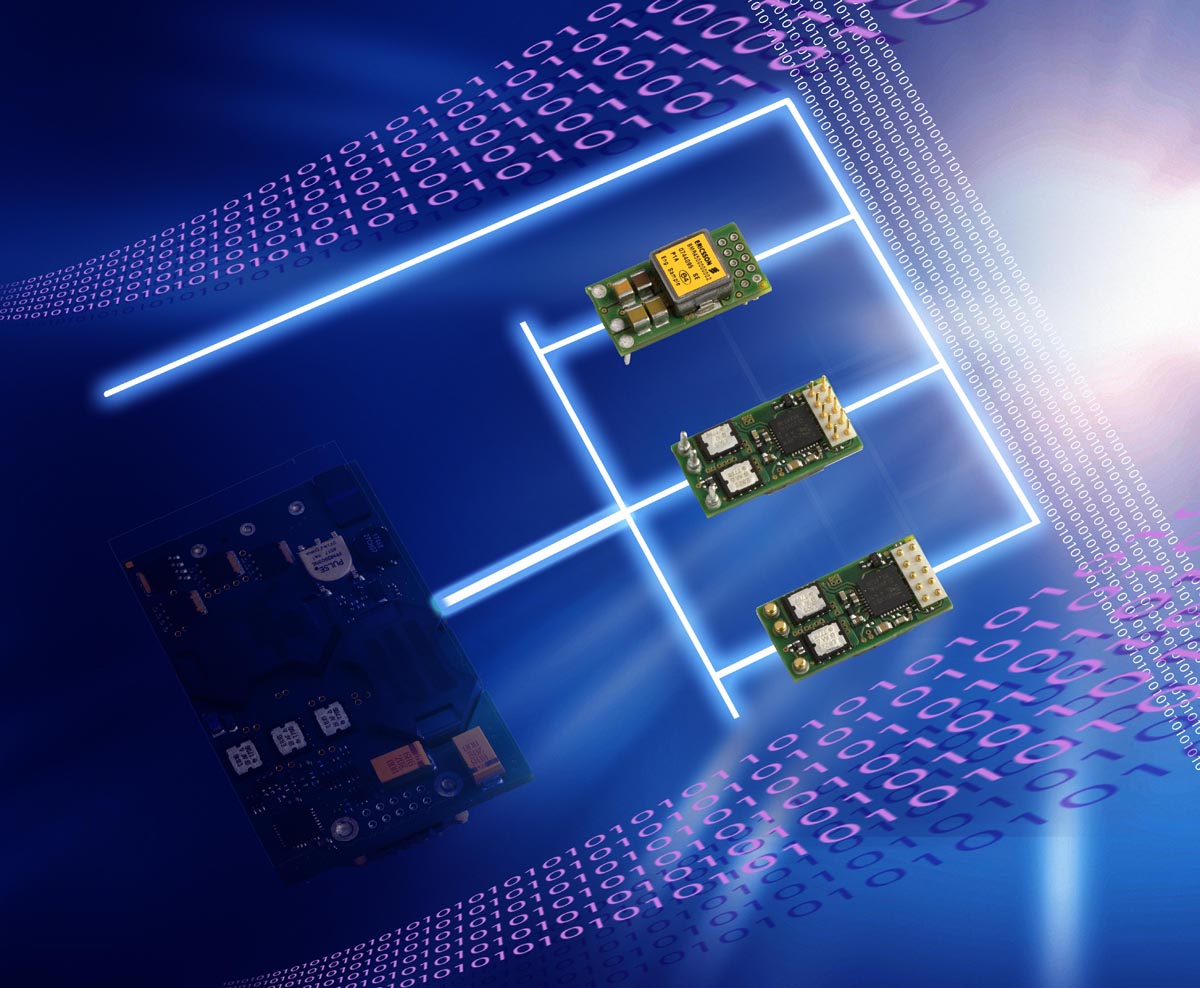

The BMR450 20A POL series is designed to provide High power density with a wide input voltage range and wide output voltage adjust function. It features functions such as Digital PWM with adaptive Dead time control, Precision delay and ramp-up & Non-Linear transient response. It is PMBus read-mode compliant.
Product program
4.5-14 V Input
Output ..................................................... Part No.
0.7-5V, 20A / 100W ........................ BMR45000020200
The BMR450 3E POL regulator are also available with different options, see Technical Specification for more details.
Mechanical data
Size (LxWxH):
25.65 x 12.9 x 8.2 mm (1.01 x 0.51 x 0.323 inch)
- 输入电压:4.5-14V
- 输出电压:0.7-5V
- 输出功率:100W
- 尺 寸:25.65 x 12.9 x 8.2 mm
| 其他型号 |
| 型号 | 标准输入 | 输入电压(V) | 效率(%) | 输出组数 | 输出电压(V) | 输出电流(A) | 输出功率(W) | 工作温度 | 尺寸(mm) |
|---|---|---|---|---|---|---|---|---|---|
| BMR450 | 0 | 4.5~15 | 96.8 | 0 | 0.7/5 | 20 | 100 | -40~120℃ | 25.65*12.9*8.2 |
