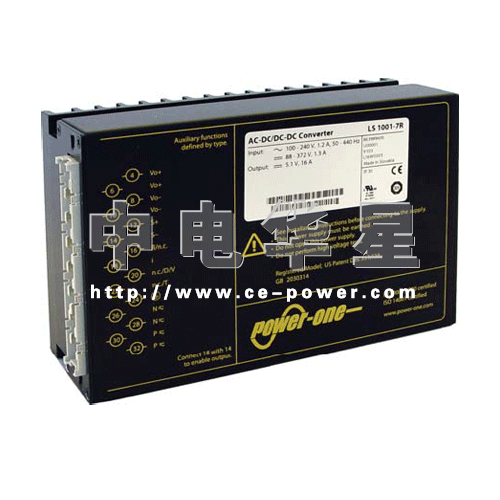

S Series 100 Watt DC-DC and AC-DC Converters
产品详细：
• RoHS lead-free-solder and lead-solder-exempted products are available.
• Class I equipment
• Extremly wide input voltage ranges from 8 to 385 VDC, and 85 to 264 VAC, 47 to 440 Hz
• Input over- and undervoltage lockout
• Adjustable output voltage with remote on/off
• 1 or 2 outputs: SELV, no load, overload, and shortcircuit proof
• Rectangular current limiting characteristic
• Immunity accord. to IEC 61000-4-2, -3, -4, -5, -6
• PCBs protected by lacquer
• Very high reliability
- 输入电压:8~385V
- 输出电压:5.1~24V
- 输出功率:80~96W
- 尺 寸:168x111x60mm
资料
| 型号 |
标准输入 |
输入电压(V) |
效率(%) |
输出组数 |
输出电压(V) |
输出电流(A) |
输出功率(W) |
工作温度 |
尺寸(mm) |
| AS1001-7R | 0 | 8~35 | 0 | 1 | 5.1/0 | 16 | 81.6 | -25~+71℃ | 168*111* |
| AS1301-7R | 0 | 8~35 | 0 | 1 | 12/0 | 8 | 96 | -25~+71℃ | 168*111*60 |
| AS1501-7R | 0 | 8~35 | 0 | 1 | 15/0 | 6.5 | 97.5 | -25~+71℃ | 168*111*60 |
| AS1601-7R | 0 | 8~35 | 0 | 1 | 24/0 | 4.2 | 100.8 | -25~+71℃ | 168*111*60 |
| AS2320-7R | 0 | 8~35 | 0 | 2 | 12/12 | 4 | 96 | -25~+71℃ | 168*111*60 |
| AS2540-7R | 0 | 8~35 | 0 | 2 | 15/15 | 3.2 | 96 | -25~+71℃ | 168*111*60 |
| AS2660-7R | 0 | 8~35 | 0 | 2 | 24/24 | 2 | 96 | -25~+71℃ | 168*111*60 |
| BS1001-7R | 0 | 14~70 | 0 | 1 | 5.1/0 | 16 | 81.6 | -25~+71℃ | 168*111*60 |
| BS1301-7R | 0 | 14~70 | 0 | 1 | 12/0 | 8 | 96 | -25~+71℃ | 168*111*60 |
| BS1501-7R | 0 | 14~70 | 0 | 1 | 15/0 | 6.5 | 97.5 | -25~+71℃ | 168*111*60 |
| BS1601-7R | 0 | 14~70 | 0 | 1 | 24/0 | 4.2 | 100.8 | -25~+71℃ | 168*111*60 |
| BS2320-7R | 0 | 14~70 | 0 | 2 | 12/12 | 4 | 96 | -25~+71℃ | 168*111*60 |
| BS2540-7R | 0 | 14~70 | 0 | 2 | 15/15 | 3.2 | 96 | -25~+71℃ | 168*111*60 |
| BS2660-7R | 0 | 14~70 | 0 | 2 | 24/24 | 2 | 96 | -25~+71℃ | 168*111*60 |
| CS1001-7R | 0 | 28~140 | 0 | 1 | 5.1/0 | 16 | 81.6 | -25~+71℃ | 168*111*60 |
| CS1301-7R | 0 | 28~140 | 0 | 1 | 12/0 | 8 | 96 | -25~+71℃ | 168*111*60 |
| CS1501-7R | 0 | 28~140 | 0 | 1 | 15/0 | 6.5 | 97.5 | -25~+71℃ | 168*111*60 |
| CS1601-7R | 0 | 28~140 | 0 | 1 | 24/0 | 4.2 | 100.8 | -25~+71℃ | 168*111*60 |
| CS2320-7R | 0 | 28~140 | 0 | 2 | 12/12 | 4 | 96 | -25~+71℃ | 168*111*60 |
| CS2540-7R | 0 | 28~140 | 0 | 2 | 15/15 | 3.2 | 96 | -25~+71℃ | 168*111*60 |
| CS2660-7R | 0 | 28~140 | 0 | 2 | 24/24 | 2 | 96 | -25~+71℃ | 168*111*60 |
| DS1001-7R | 0 | 44~220 | 0 | 1 | 5.1/0 | 16 | 81.6 | -25~+71℃ | 168*111*60 |
| DS1301-7R | 0 | 44~220 | 0 | 1 | 12/0 | 8 | 96 | -25~+71℃ | 168*111*60 |
| DS1501-7R | 0 | 44~220 | 0 | 1 | 15/0 | 6.5 | 97.5 | -25~+71℃ | 168*111*60 |
| DS1601-7R | 0 | 44~220 | 0 | 1 | 24/0 | 4.2 | 100.8 | -25~+71℃ | 168*111*60 |
| DS2320-7R | 0 | 44~220 | 0 | 2 | 12/12 | 4 | 96 | -25~+71℃ | 168*111*60 |
| DS2540-7R | 0 | 44~220 | 0 | 2 | 15/15 | 3.2 | 96 | -25~+71℃ | 168*111*60 |
| DS2660-7R | 0 | 44~220 | 0 | 2 | 24/24 | 2 | 96 | -25~+71℃ | 168*111*60 |
| ES1001-7R | 0 | 67~385 | 0 | 1 | 5.1/0 | 16 | 81.6 | -25~+71℃ | 168*111*60 |
| ES1301-7R | 0 | 67~385 | 0 | 1 | 12/0 | 8 | 96 | -25~+71℃ | 168*111*60 |
| ES1501-7R | 0 | 67~385 | 0 | 1 | 15/0 | 6.5 | 97.5 | -25~+71℃ | 168*111*60 |
| ES1601-7R | 0 | 67~385 | 0 | 1 | 24/0 | 4.2 | 100.8 | -25~+71℃ | 168*111*60 |
| ES2320-7R | 0 | 67~385 | 0 | 2 | 12/12 | 4 | 96 | -25~+71℃ | 168*111*60 |
| ES2540-7R | 0 | 67~385 | 0 | 2 | 15/15 | 3.2 | 96 | -25~+71℃ | 168*111*60 |
| ES2660-7R | 0 | 67~385 | 0 | 2 | 24/24 | 2 | 96 | -25~+71℃ | 168*111*60 |
| FS1001-7R | 0 | 20~100 | 0 | 1 | 5.1/0 | 16 | 81.6 | -25~+71℃ | 168*111*60 |
| FS1301-7R | 0 | 20~100 | 0 | 1 | 12/0 | 8 | 96 | -25~+71℃ | 168*111*60 |
| FS1501-7R | 0 | 20~100 | 0 | 1 | 15/0 | 6.5 | 97.5 | -25~+71℃ | 168*111*60 |
| FS1601-7R | 0 | 20~100 | 0 | 1 | 24/0 | 4.2 | 100.8 | -25~+71℃ | 168*111*60 |
| FS2320-7R | 0 | 20~100 | 0 | 2 | 12/12 | 4 | 96 | -25~+71℃ | 168*111*60 |
| FS2540-7R | 0 | 20~100 | 0 | 2 | 15/15 | 3.2 | 96 | -25~+71℃ | 168*111*60 |
| FS2660-7R | 0 | 20~100 | 0 | 2 | 24/24 | 2 | 96 | -25~+71℃ | 168*111*60 |
