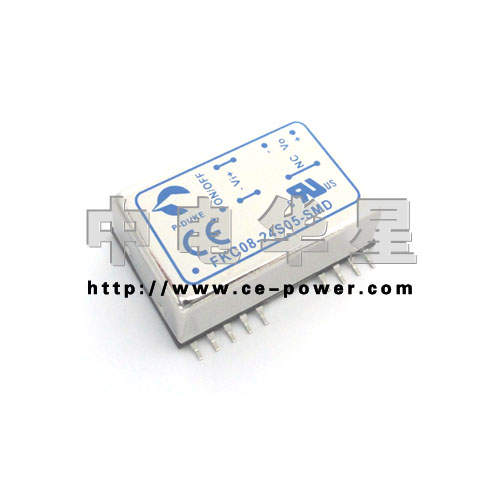

FKC08W
产品简介：
博大推出FKC08W系列电源模块
产品详细：
· RAILWAY APPLICATION
· 4:1 ULTRA WIDE INPUT VOLTAGE RANGE :9 - 36VDC AND 18 – 75VDC AND 43 – 160VDC
· 8 WATTS OUTPUT POWER
· OUTPUT CURRENT UP TO 2.4A
· STANDARD 1.25 X 0.80 X 0.40 INCH AND 24 PIN DIP PACKAGE
· HIGH EFFICIENCY UP TO 88%
· FIVE-SIDED CONTINUOUS SHIELD
· FIXED SWITCHING FREQUENCY (300KHz)
· CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC
· UL60950-1, EN60950-1, IEC60950-1 AND EN50155 SAFETY APPROVALS PENDING
· COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC
- 输入电压:9 ~ 36V 18 ~ 75V 43 ~ 160V
- 输出电压:
- 输出功率:8W
- 尺 寸:31.8 X 20.3 X 10.2 mm
